Browse Intel Atom, Skylake, Kaby Lake, Apollo Lake, LX800 Processors and more.
VersaLogic's rugged single board computer and embedded computer products are designed for critical applications that value reliability and long-life.
Industry-standard form factors such as PC/104 and COM are available in standard (COTS), modified (MCOTS), and custom versions.
A near-credit-card sized embedded computer featuring Intel’s Apollo Lake Atom processor and error correcting memory. Includes TPM 2.0 security chip, on-board power regulation, USB and Ethernet, and Mini PCIe expansion sockets. Soldered-on ECC RAM enhances the extreme ruggedness and reliability.
REQUEST OEM PRICINGA compact 95 x 95 x 29 mm embedded computer featuring error-correcting memory, and a power-saving dual- or quad-core “Apollo Lake” processor. It includes TPM 2.0 security, latching I/O connectors, high performance video, and full -40° to +85°C operating range.
REQUEST OEM PRICING

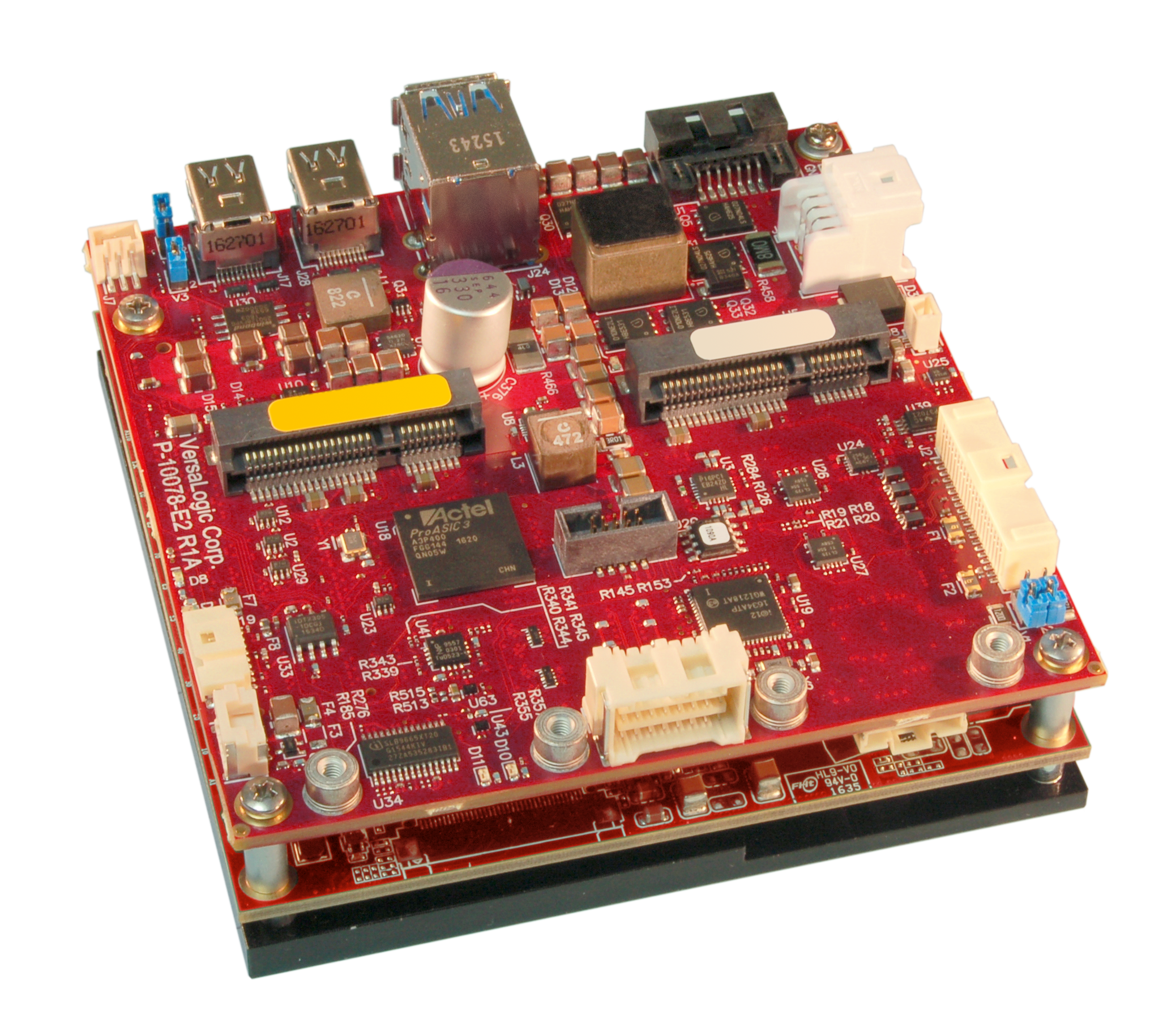

Intel Core "Skylake" Processor
Dual-core, up to 2.6 GHz clock rate.
Wide input voltage range of 8 to 30 volts
Compatible with 12 or 24V vehicle applications
Extensive On-board Expansion and I/O features
Two mini PCIe sockets, USB 3.0 and 2.0, digital I/O, I2C, RS232/422/485
Intel Core "Skylake" Processor
Quad- and dual-core, up to 2.6 GHz clock rate.
On-board Power Management
Accepts 8 to 30 volts DC, provides OVP, reverse polarity protection,
RF noise filtering, and transient voltage suppression.
On-board and Expansions I/O Options
2.5x mini PCIe sockets, 2x USB 3.0, 4 USB 2.0, 8 AI, 4 AO, 24 DIO,
3 counter/timers and 4 serial COM ports (232/422/485).

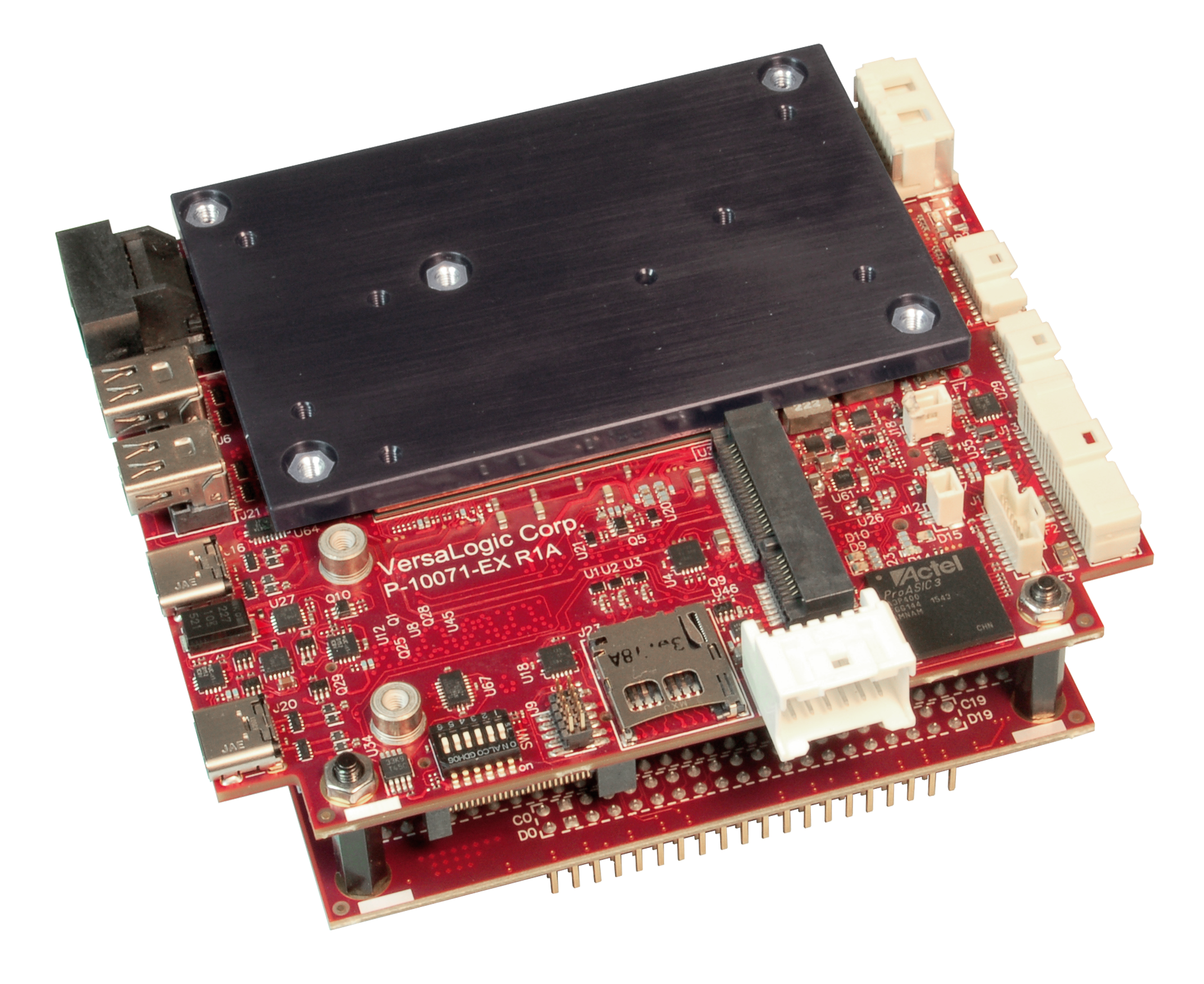

Combines Intel’s “Kaby Lake” high-performance computing and video processing with a traditional PC/104-Plus expansion interface making it easy to upgrade the performance of existing PC/104 systems while preserving plug-in compatibility with existing specialty I/O boards.
REQUEST OEM PRICINGBuilt around Intel’s 7th Generation Core “Kaby Lake” processor for high-performance computing and video processing, along with the PCIe/104 OneBank connector to support high-speed expansion whenever needed. The “Kaby Lake” processor features a Dual-core CPU and Hyper-Threading logic that allows up to 4 simultaneous threads to be executed.
REQUEST OEM PRICINGAvoid downtime: We take extensive steps to ensure that our products are available when you need them, for however long you need them.
That includes keeping a deep in-house stock of hard-to-get parts and proactive supply chain management. Formal lifecycle extension options are available.
